Swagelok filters

Swagelok manufactures high-quality coalescing particle filters, inline particulate filters, tee-type particulate filters, high-purity filters, and ultrahigh-purity filters for liquid and gas service. Our industrial fluid system filters are available in a wide variety of filter element materials and nominal pore sizes. If you need reliable filtration of your fluid systems so you can avoid contamination or particulate-related flow issues in your systems, choose Swagelok filters.

Filters Literature

Download Swagelok filter documentation.

In one click you will receive the three Digital Catalog and other informational materials.

Email to Me

Swagelok filter design and features

If your operation depends on preventing contamination or particulate-related flow issues, choose Swagelok filters. Here are three examples of their thoughtful design:

Ask your Questions

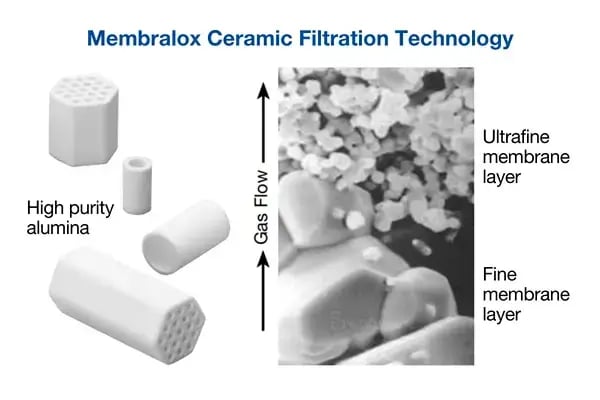

Membralox Technology
Membrane filters
click to enlarge image

Membralox Technology

Membralox ceramic filters are constructed with layers of material of decreasing pore sizes. This allows particles of larger size to be caught in the outer zone while trapping smaller particles in the inner zone. A final sintering process fuses the layers together. The benefits of multiple layers are longer life and higher efficiency.

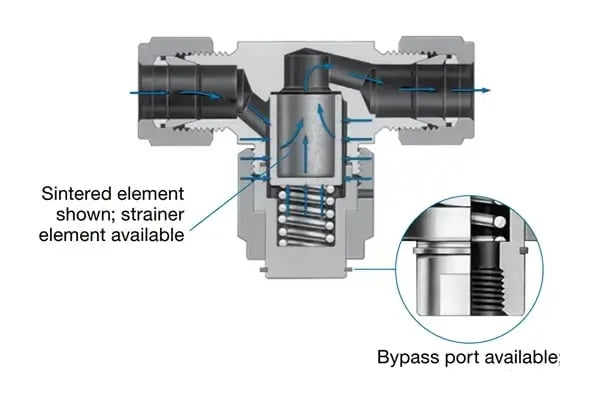

TF series sintered filters
TF series sintered filters
click to enlarge image

TF series sintered filters

Here an element can be replaced without removing the body. Replaceable sintered elements are available in 0.5, 2, 7, 15, 60, or 90 µm nominal pore sizes; replaceable strainer elements in 40, 140, 230, or 440 µm. Pair with Swagelok tube fittings, NPT, and tube socket or tube butt weld ends. Alternative fuel service options.

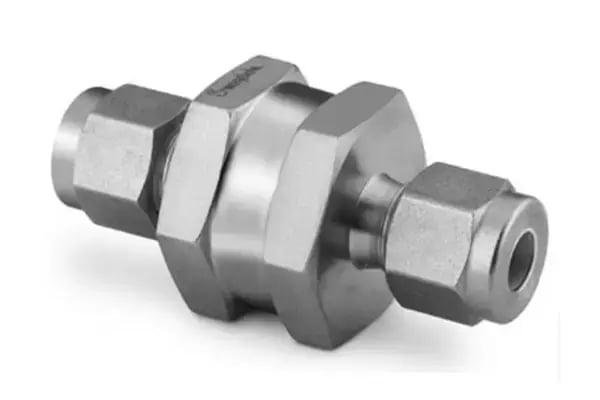

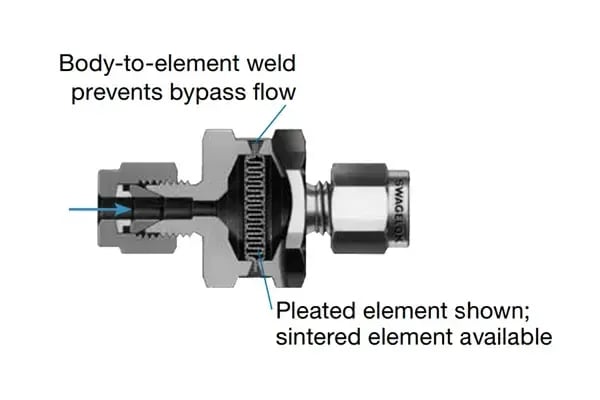

FW series inline filters
FW series inline filters
click to enlarge image

FW series inline filters

FW Series inline filters save space, have all-welded construction, and are easily backflushed. The sintered element is available in 0.5 µm nominal pore size, while pleated mesh elements are available in 2, 7, and 15 µm nominal pore sizes. For end connections choose from Swagelok tube fittings, NPT, and male VCR face seal fittings.

Certificates

Many certifications demonstrate that our filters meet or exceed industry specifications.
Certificates

Expertise

Reliable answers and assistance are available, with visits to your location or through Swagelok's Waddinxveen office. We offer extensive knowledge worldwide.
Expertise

Warranty

Swagelok backs every product part, assembly and service with its industry-leading warranty.
Warranty

Assembly

We offer filters pre-assembled with regulators, end connections and other components.
Assembly

Stock

We receive products daily from our facility in America. You can count on fast deliveries of standard products.
Stock

Production

From raw materials to the finished products, filters are processed such as electropolishing, welding, assembly and testing and all in our own facilities.
Production

Material

Swagelok stainless steel contains at least 17% chromium and 12% nickel, which is above ASTM specifications.
Material

Reliability

Our technical reports provide data demonstrating the reliability of Swagelok filters.
Reliability

Training

We offer a variety of Tech talks that teach design, installation and maintenance skills.
Training

Swagelok filters for industrial fluid systems

Swagelok produces several lines of filters for manufacturing, processing, and other industrial applications. We also offer an innovative filter retainer assembly for our popular K Series regulator. Element kits, gasket kits, and insertion tools are available too.

Tee-Type Filters (TF Series).
Tee-Type Filters (TF Series).
In TF filters, a filter element can be replaced without removing the housing. Replaceable sintered and sieve elements are available in different nominal pore sizes. Choose from a variety of end connection options.

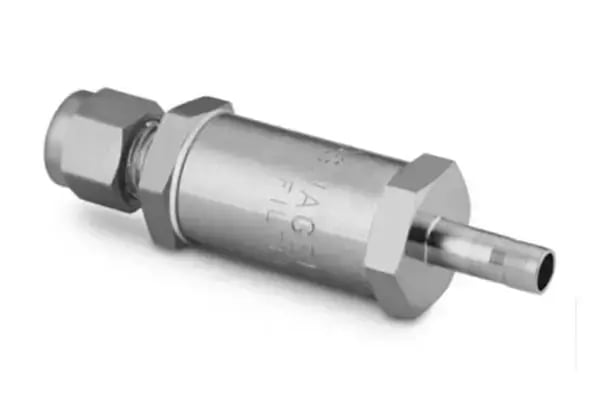

Inline Filters (F Series)
Inline Filters (F Series)
Our compact F Series filters have replaceable sintered elements and strainer elements in various nominal pore sizes. End connection options include Swagelok tube fittings, NPT, tube adapters and male VCR seal fittings.

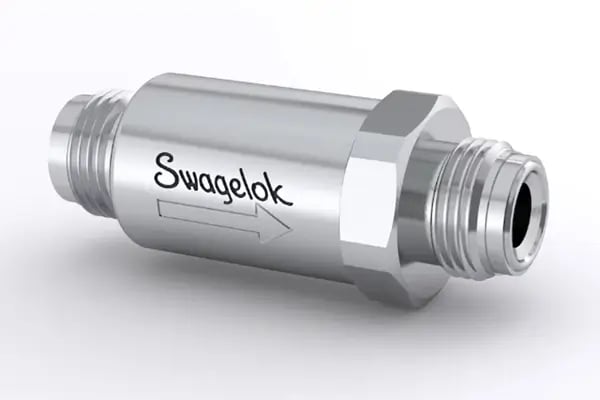

Ultra-High Purity Filters (SCF Series).
Ultra-High Purity Filters (SCF Series)
With particle removal greater than 99.9999999% at 0.003 µm at maximum flow rate, SCF filters meet SEMI E49.8-96 requirements. Designed with a Membralox ceramic element and a 316L VAR stainless steel housing.
Welded Filters (FW Series)
Welded Filters (FW Series)
FW filters are compact and have a fully welded construction, providing reliable fluid control. A weld between the body and element prevents bypass flow, but these filters are easily cleaned by backwashing.

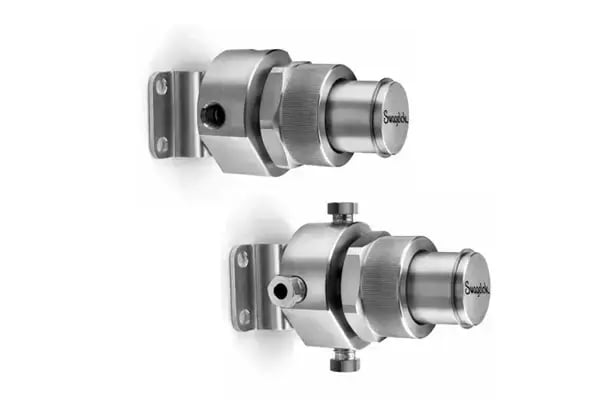

Gas Filters (FC Series)
Gas Filters (FC Series)
Our stainless steel FC filters can be mounted horizontally to save space. They have a drain connection on the housing, eliminating the need to disconnect the line when replacing elements. Various end connection options are available.

Our local team offers quick quotes, product selection advice, and daily shipping. If we can help in any way, please message us.

Ask your Questions

Three options for keeping fluid systems cleaner

Learn more about our three filters and the applications of each. Our Swagelok F series inline filter, TF removable filter, and FW all-welded filter are available in a variety of sizes and end connections.

Saving with fully built assemblies

We design, manufacture and test fluid system assemblies for customers, here in Waddinxveen

We combine safe, reliable Swagelok components to produce assemblies for analytical instrumentation, grab sampling and other applications. Design support, fabrication, assembly and pressure testing are included. Results are guaranteed, as are individual Swagelok components. We even schedule time to be on-site at installation to answer any questions.

Frequently asked questions

What types of filters does Swagelok have?

Swagelok manufactures high-quality coalescing particle filters, inline particulate filters, tee-type particulate filters, high-purity filters, and ultrahigh-purity filters for liquid and gas service. Our industrial fluid system filters are available in a wide variety of filter element materials and nominal pore sizes.

How do I select the right filter?

It is important to consider the details of your application, such as media, flow rate needed, temperatures, and other factors.

For details on each product line, download the literature available on this page.

How do I get help with filters?

Support: Our friendly experts are happy to help you find just the right option that is well suited to your application.

Custom assemblies: You can choose a fully built, leak-tight assembly that fits your system exactly. Design support, fabrication, assembly, testing, documentation and installation support are included.

How do I service this Swagelok filter?

We offer a gasket kits and element kits for TF Series Tee-Type Filters and F Series Inline Filters. Each kit includes a detailed instructions card that lists steps along with illustrations. In the case of Swagelok's TF Series Tee-Type filter, for example, there are 10 steps. Instruction sheets include important warnings about depressurizing and other steps.

If you would like help getting filters, spare parts, servicing instructions, or other items, please contact us.

Can you help us troubleshoot a filter?

Yes, our Field Advisors are here to help pinpoint the root cause of problems, help diagnose the issue, and recommend solutions. Sometimes they can help remotely—like by video, calls, and file exchanges—other times they'll come onsite to your facility.

A filter not operating as expected can affect the entire system, making it critical to determine the issue quickly. We recommend talking our Swagelok Field Advisors -- our elite problem solvers.

How do we keep our fluid system cleaner?

Our Swagelok F series inline filter, TF removable filter, and FW all-welded filter are available in a variety of sizes and end connections. For more questions please feel free to contact us.

Is this filter in stock and what is the price?

For personalized, up-to-the-minute answers to sales and support questions, please use green buttons on this page to request details/quote.

If you prefer to find answers yourself, visit products.swagelok.com, register for an account, and start exploring. Anyone can register, and completing the entire registration form will allow you to view pricing, order online, request quotes, store favorite products, assign customized part numbers, and save or forward your shopping cart.
